nod_on_soft_remote

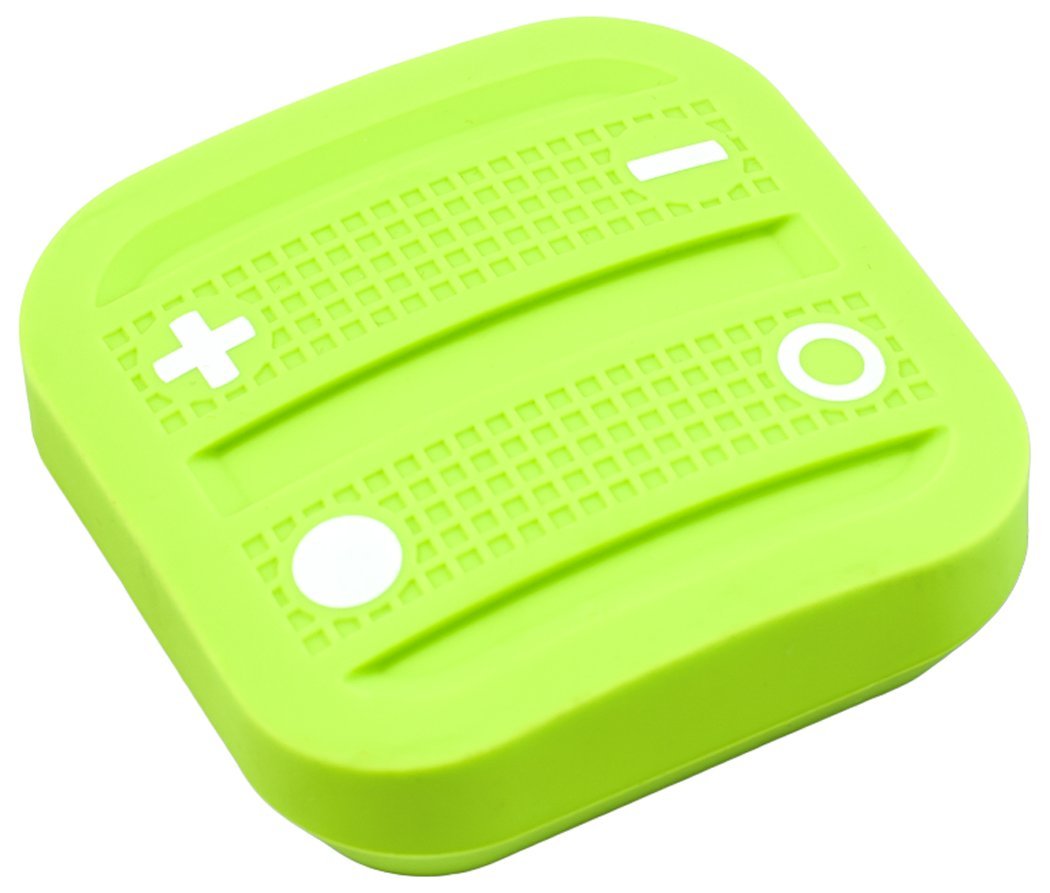

The NodOn Soft Remote is a fun 4-button remote with splashproof cover, funky colours and a magnetic base so it can be stuck to things.

WARNING: This comes with various different radio protocols (e.g. Z-Wave, EnOcean). Make sure you're getting the right one!

Using with Home Assistant

If configured in Scene Mode, which is the default mode once included in a Z-Wave network, you must set config parameter 3 (Scene Mode) to “Scene Activiation”. The default is “Central Scene” and this mode will not trigger the

zwave.scene_activated

events in Home Assistant.

The scenes will be actived as follows:

Press Type Scene
Quick Press X0
Double Press X3
Long Press X2
Released (from Long Press) X1

The X in the table above should be replaced with the number of the button:

 +----------+    +----------+
 |  2    4  |    |  +    -  |
 |          |    |          |
 |  1    3  |    |  ●    ○  |
 +----------+    +----------+

This means a single press of the + button will activate scene 20. A long press of the ○ button will activate scene 32, followed by scene 31 when the button is released.

Example Configuration

The following is example configuration from irl to control the lounge television and Kodi using a Wasabi coloured remote (the colour is not really important).

##################################
### Lounge Wasabi Remote       ###
##################################
- alias: "Lounge Wasabi Remote Turn On TV"
  trigger:
    platform: event
    event_type: zwave.scene_activated
    event_data:
      entity_id: zwave.lounge_wasabi_remote
      scene_id: 10
  action:
    - service: switch.turn_on
      entity_id: switch.lounge_tv_power
- alias: "Lounge Wasabi Remote Turn Off TV"
  trigger:
    platform: event
    event_type: zwave.scene_activated
    event_data:
      entity_id: zwave.lounge_wasabi_remote
      scene_id: 32
  action:
    - service: switch.turn_off
      entity_id: switch.lounge_tv_power
- alias: "Lounge Wasabi Remote Pause Media"
  trigger:
    platform: event
    event_type: zwave.scene_activated
    event_data:
      entity_id: zwave.lounge_wasabi_remote
      scene_id: 30
  action:
    - service: media_player.media_play_pause
      entity_id: media_player.lounge_kodi
- alias: "Lounge Wasabi Remote Play Groove Salad"
  trigger:
    platform: event
    event_type: zwave.scene_activated
    event_data:
      entity_id: zwave.lounge_wasabi_remote
      scene_id: 12
  action:
    - service: media_player.play_media
      data:
        entity_id: media_player.lounge_kodi
        media_content_id: "plugin://plugin.audio.somafm/groovesalad"
        media_content_type: "MUSIC"
    - service: switch.turn_on
      entity_id: switch.lounge_tv_power
- alias: "Lounge Wasabi Remote Volume Down"
  trigger:
    platform: event
    event_type: zwave.scene_activated
    event_data:
      entity_id: zwave.lounge_wasabi_remote
      scene_id: 40
  action:
    - service: media_player.volume_down
      entity_id: media_player.lounge_kodi
- alias: "Lounge Wasabi Remote Volume Up"
  trigger:
    platform: event
    event_type: zwave.scene_activated
    event_data:
      entity_id: zwave.lounge_wasabi_remote
      scene_id: 20
  action:
    - service: media_player.volume_up
      entity_id: media_player.lounge_kodi
